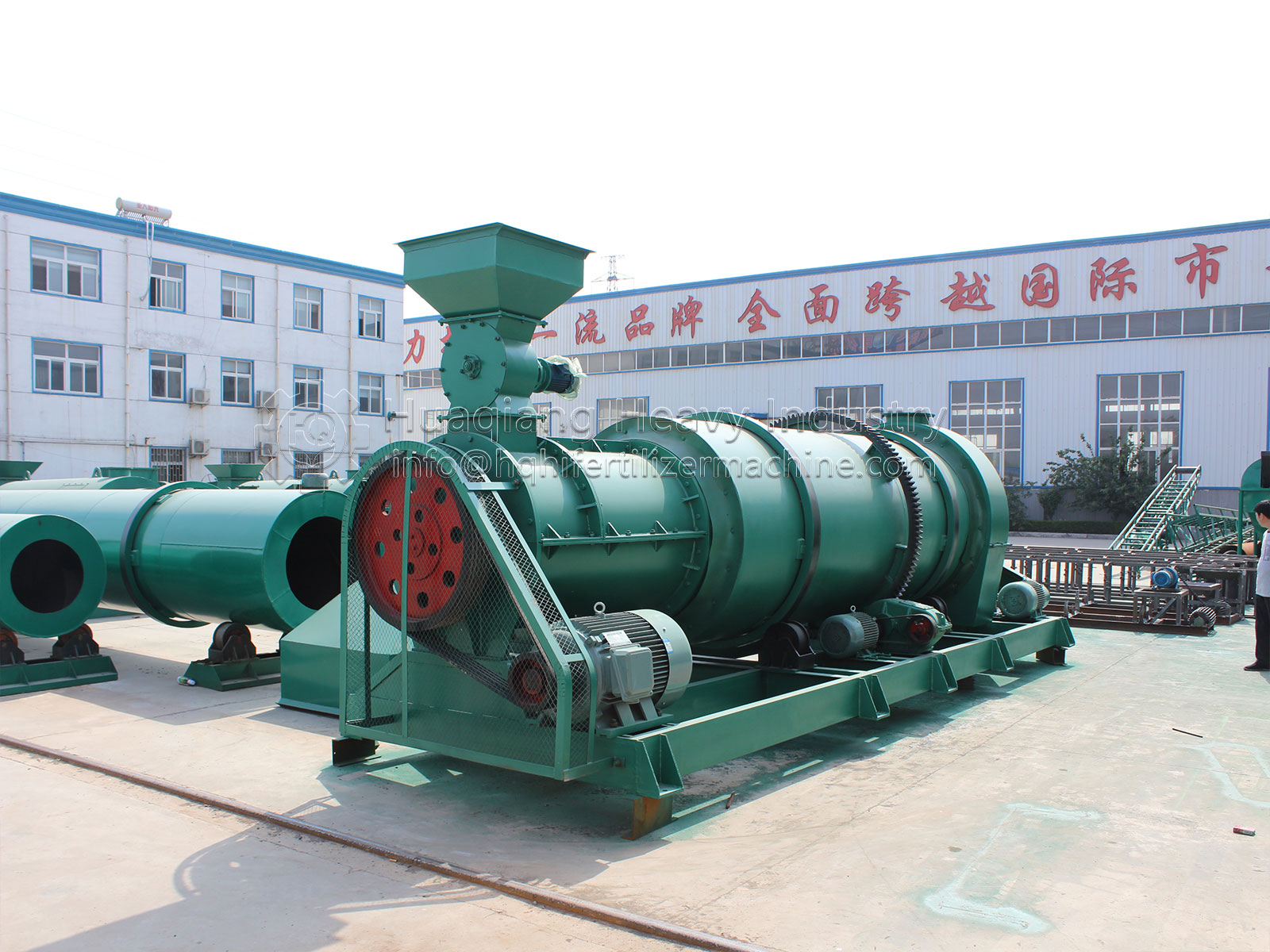

New Type Two In One Cow Dung Organic Fertilizer Granulating Machine
Introduction to new type two in one organic fertilizer granulating machine
New type two in one organic fertilizer granulator is also called drum stirring tooth two in one granulator. It is a newly developed granulator used for granulating various kinds of fermented organic materials. The raw materials need not to be dried before granulation, saving energy and production cost. The granules produced by this fertilizer making machine are spherical type, which is easy to apply.
Specifications of new type two in one organic fertilizer granulating machine
| Model | Capacity (t/h) | Diameter (mm) | Power |
| YSL2-60/120 | 2-4 | 1-5 | 42.6KW |
| YSL2-80/120 | 3-5 | 1-5 | 58.2KW |
| YSL2-80/140 | 4-6 | 1-5 | 58.6KW |
| YSL2-80/150 | 5-8 | 1-6 | 60.5KW |
| YSL2-100/150 | 6-10 | 1-8 | 72.5KW |
| YSL2-100/160 | 7-11 | 1-8 | 75.6KW |
| YSL2-100/180 | 8-12 | 1-10 | 80KW |
Working principle of new type two in one organic fertilizer granulating machine
Main work method of new type two in one organic fertilizer granulator manufacturer is aggregate wet granulation, through a certain amount of water or steam, the basic fertilizers that been wetted in the cylinder body will react; under a certain liquid conditions, with the rotation of the tube, the material particles are created to squeeze together the balls. Then high speed rotating mechanical shearing force and the resulting air power in Bio New type organic fertilizer Granulator will make continuous implementation of the fine powder material in the machine mixing, granulating, spheroidizing, density and other processes, which achieves the goal of the granulation.
Features of new type organic fertilizer granulating machine
1. Stable foundation, thickened spiral steel materials and ametabolic wheel can make sure the machine stable working.
2. Widely raw materials processing.
3. High granulation rate. Normally, the granulation rate of the fertilizer granulators is above 95%.
Advantages of new type organic fertilizer granulating machine
1. Fermented materials need not to be dried; the moisture content can be 20%-40%.
2. Fertilizer granules produced are solid so that not easy to be moistened.
3. High granulation rate which can reach 80%-90%, suitable for various formulations.
4. More efficient. Compared with disc granulators and rotary drum granulators, new type two in one organic fertilizer granulating machine can produce harder organic fertilizer pellet.
Application of new type organic fertilizer granulating machine
The new type two in one organic fertilizer granulating machine can be used in the following materials:
Animal manure: Chicken manure, cow dung, pig manure, poultry manure, horse manure, bat guano, vermicompost and so on.
Industrial waste: Municipal sludge
Commercial waste: Soya meal, filter mud from sugar mill, worse slag cake
Food waste: Kitchen waste, food waste from restaurants or dining hall and so on.
